Tarpaulin Coating Line

SKU: CEMAY-KUMAS-HAT-BRANDA
Request a Quote
Tarpaulin and technical-textile combined coating line at 3400 mm working width, with combined knife-over-air / knife-over-roll coating, a 6-chamber 18 m electric dryer and a 40-tonne water-cooled smoothing calender.
Request a Quote Download Brochure (PDF)

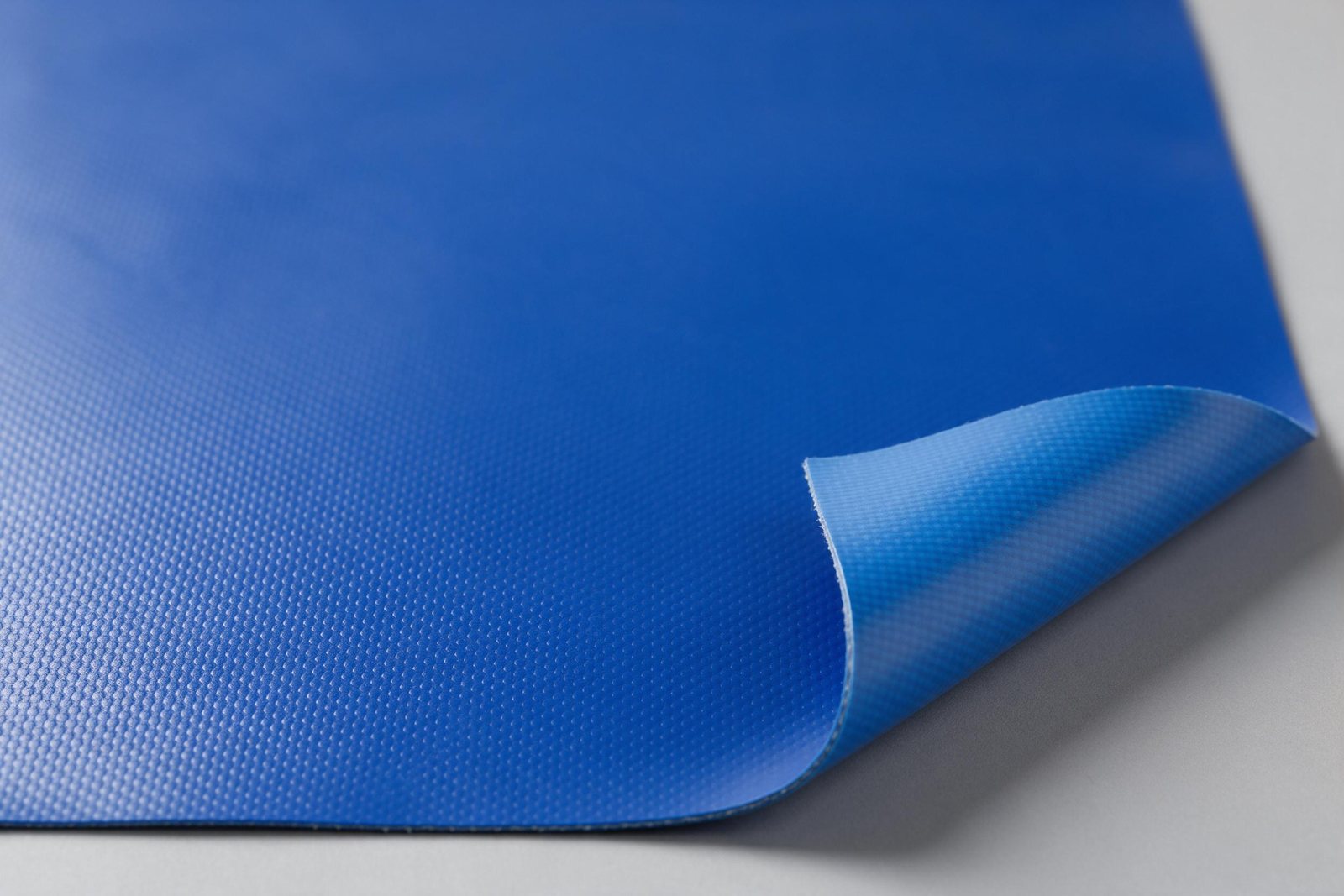

Tarpaulin production calls for precision, stability and a well-controlled coating process. The CEMAY tarpaulin coating line applies PVC coating to wide polyester fabric as a homogeneous, durable layer; waterproofing, UV and abrasion resistance, a consistent coat weight and an even surface come with that layer. PVC-coated tarpaulin has a wide field of use, from truck and lorry covers to tents, awnings and industrial covers.

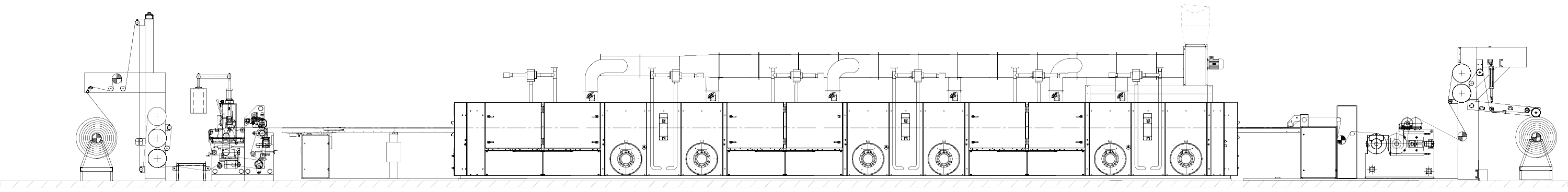

Tarpaulin coating line layout drawing, side view

↔ Scroll sideways to see the whole line

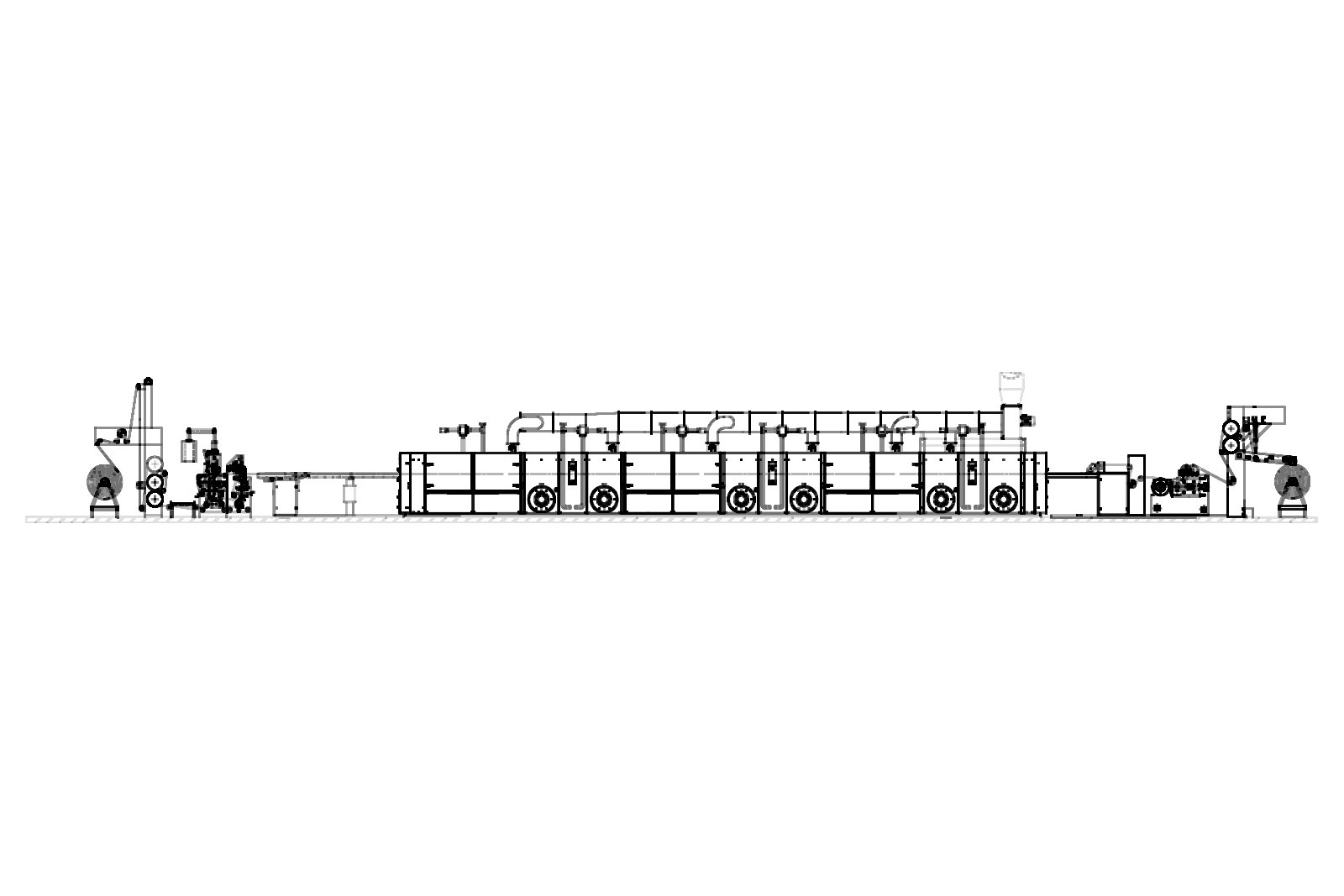

Example tarpaulin coating line layout, side view. The unit arrangement and working width are engineered to your product.

How does a tarpaulin coating line work?

Tarpaulin coating is the controlled application of a PVC layer onto a polyester base fabric, cured in an oven to produce a waterproof surface that resists UV and chemicals. The result comes not from a single machine but from six connected units working as one.

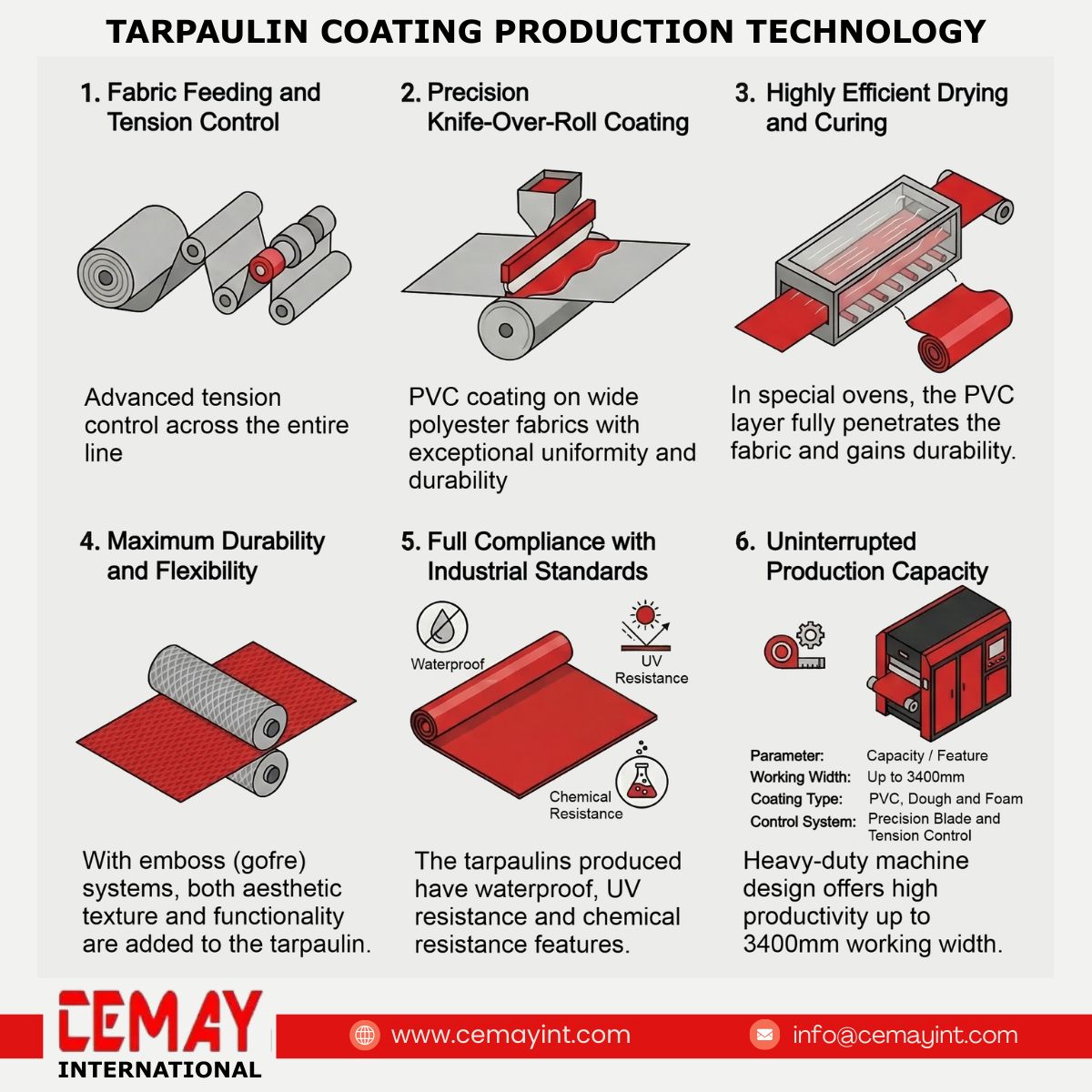

CEMAY infographic showing a tarpaulin coating line in six stages: fabric feeding and tension control, precision knife-over-roll coating, drying and curing, embossing, compliance with industrial standards and uninterrupted production up to 3400 mm working width.
Tarpaulin Coating Production Technology · Click the image to enlarge
  1. Fabric feeding and tension control Advanced tension control across the entire line keeps the fabric stable.
  2. Precision knife-over-roll coating PVC coating is applied to wide polyester fabrics with exceptional uniformity and durability.
  3. Highly efficient drying and curing In special ovens the PVC layer fully penetrates the fabric and gains durability.
  4. Maximum durability and flexibility Emboss systems add both aesthetic texture and functionality to the tarpaulin.
  5. Full compliance with industrial standards The tarpaulins produced are waterproof, UV resistant and chemical resistant.
  6. Uninterrupted production capacity Heavy-duty machine design delivers high productivity up to 3400 mm working width.

Coating types are PVC, paste and foam; the control system rests on a precision knife and tension control.

In depth: Tarpaulin Coating Production Technology: The Six Stages of the Line

Products specifications
Attribute name Attribute value
Mechanical
Working Width 3400 mm (fabric); cylinder 3600 mm
Coating Cylinder Ø500 mm, chrome-plated, ±0.005 mm
Knife Type Combined knife-over-air + knife-over-roll (2 knives)
Calender Pressure 40 tonnes (water-cooled horizontal calender)
Electrical
Installed Power 7 kW (coating machine)
Voltage 3×400 V, 50 Hz (±5%)
Control Voltage 110 V, 50 Hz
Protection Class IP55 (motors and drive panel)
Heating Power 80 kW per chamber (6 chambers)
Automation Fully automatic; per-chamber PID; HMI panel
Process
Line Speed 2–50 m/min
Chamber Count / Length 6 × 3000 mm (18 m electric drying)
Heating Type Electric resistance (drying); oil (conditioning)
Temperature Tolerance ±1 °C (conditioning)
Air Pressure 7 bar (dry, lubricated)
Infeed Tension 0–100 kg (adjustable)
*
*
*
